| Commercial Vehicle Garage Equipments - Wheel Service Equipments |
|
|
|
|
|
| OLS - 761 |
 |
| OLS - 762 |
 |

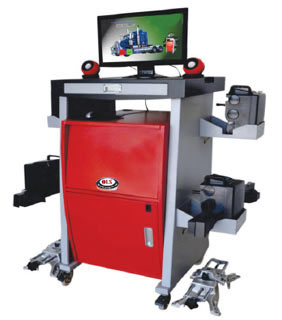

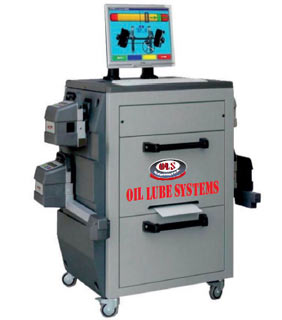

| 3D Wheel Aligner |
|
- 6/ 8CCD aligner Bluetooth Transmission between front heads and cabinet for faster information transfer.
- Special support on the side of control.
- Infrared transmission between sensor heads Data management and display program in windows environment.
- Deluxe cabinet with 19" flat screen.
- Customer data banks for recording jobs with search by customer name and vehicle plate number.
- Specific truck Alignment software develop for truck alignment specialists.
- Big wheel for easy movement inside workshop.
- Drawers to store accessories.
|
|
| Technical Data |
Accuracy |
Range |
| Front Axle |
|
|
| Total Toe |
+/-3' |
+/-5° |
| Partial Toe |
+/-130" |
+/-2° 30' |
| Set- Back |
+/-3' |
+/-5° |
| Camber |
+/-3' |
+/-10° |
| Caster |
+/-5' |
+/-18° |
| King Pin |
+/-5' |
+/-18° |
|
|
|
|
| Wheel Balancer (OLS PRO 544) |
|
| For balancing both truck and bus wheels Automatic braking after spin. Automatic start/stop when the hood is lowered/raised. STOP pushbutton to stop the machine immediately Static and dynamic balancing modes. Exceptional stability in reading the unbalance between planes. |
| Power supply |
220V/230V-1ph |
| Motor power |
250W |
| Shaft diameter |
40mm |
| Max wheel weight |
200kg |
| Wheel diameter |
1200mm |
| Rim diameter |
10" - 32" (255 - 810 mm) |
| Wheel width |
1.5" - 20" (39 - 510mm) |
| Balancing precision |
± 10g |
| Cycle time |
15s |
| Balancing speed |
90 rpm for truck mode |
| Noise level |
< 70 dbA |
| Air supply |
8 10 bar |
|
|
|
|

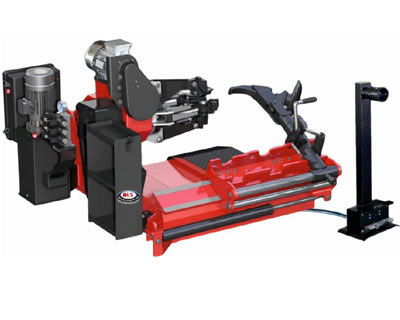

| Automatic Tyre Changer (OLS -764) |
|
- Two speed hydraulic chuck, with 5 different rim locking position.
- Mobile cable control unit. Hand Movable tool holder.
|
| Rims from |
13" - 27" |
| Max. wheel weight |
1500kg |
| Max. wheel diameter |
1600 mm (63") |
| Max. wheel width |
780 mm (30½”) |
| Hydraulic unit |
1.5kw/415V |
| Motor power |
|
| Chuck motor power 3ph |
1.3/1.8kw-415V |
| Operating pressure |
0 - 130 bar |
| Bead breaker force |
1865 kg |
|
|
|
|
|

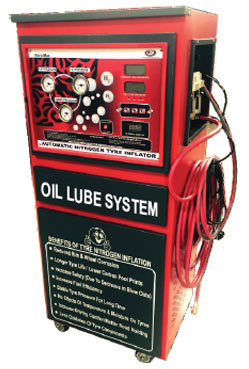

| Nitrogen Inflator / Deflator (OLS -765) |
|
Power : 50 W, Accuracy : +1%, Digital Display
Nitrogen Purity : 95-99%,
Operating Temp 5-70C
Input Air Pressure : 8-10 Kg/ cm,
Display Mode : Fixed LCD
Dimension : 1400X600X520mm
Power Supply : AC 220 V, 50 Hz
Measuring Range : 0.4-9.99 kg/cm
Built-in Nitrogen
Storage Tank : 70Ltrs.High Pressure Air
Charge Hose : 10 Mtrs
Breaking Pressure : >145PSI(>10Kg/cm )
Output Nitrogen : 14 - 7 Kg/ cm Pressure
Nitrogen Produced : 2000-4000 L/h
