| Commercial Vehicle Garage Equipments - Battery Charger / Tester & Special Service Tools Board |
|
|
| Battery Charger / Tester & Special Service Tools Board |
|
| |

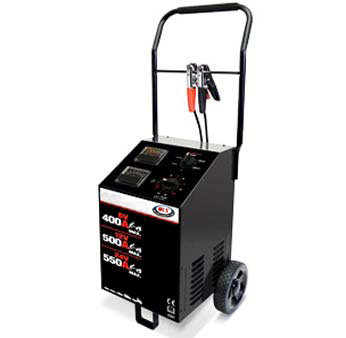

Digital Battery Charger Heavy Duty
(OLS - 809) |
|
- Fully automatic microprocessor controlled / manual.
- 350 Amp engine start – for emergency starting.
- 70 Amp rapid charge – charges a battery in 1 to 2
hours.
- 40 Amp and 20 Amp fast charge – charges in 1 to 3 hours.
- 4 Amp slow charge – charges in 3 to 5 hours.
- Fiberglass rod – for clamp storage.
- 2.25 hour timer.
- 1.83m output cables, 2.74m AC line cord.
- Large face, clear view ammeter and voltmeter.
- High-efficiency fan cooling system.
- Heavy-duty voltage and rate control switches.
- Automatic overload reset/short circuit protection.
- Easy-roll, wide-track wheels
|
|
|
| |

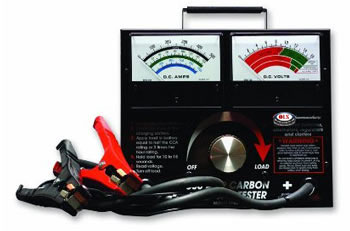

| Battery Load Tester (OLS - 810) |
|
- Variable load carbon pile tester offers
maximum accuracy when performing battery load tests.
- Separate voltmeter and ammeter allow easy
viewing and understanding of battery test
results.
- Color- coded, temperature compensation
pass/fail bands on voltmeter.
- Tests batteries up to 1000 CCA.
|
 |
| Digital Battery Tester with Printer (OLS - 811) |
|
- 100A load test.
- Tests 6V and 12V batteries.
- Tests 12V and 24V charging systems.
- Operating range: 40-2000 CCA.
- Rates: CCA (SAE), DIN, EN, IEC, JIS.
- 3 Testers in 1: Battery (i) Charging (ii) Starting
- Built-in printer.
- Replaceable leads.
|
 |
|
|
| |
| Digital Battery Tester (OLS -812) |
|
- Microprocessor controlled ─ for an easy and accurate
load test with no need to time yourself.
Bright, 3-color, LCD digital display ─ indicates both
voltage and test results
6-step design ─ indicates Pass, Pass & Recharge,
Recharge & Retest, Fail, Bad Cell and 1 LED indicates
"Check Clamp"
Super-grip battery clamps ─ heavy-duty and colorcoded.
Protective boot and 9 volt battery included.
|
| |
|
| |
|
| |

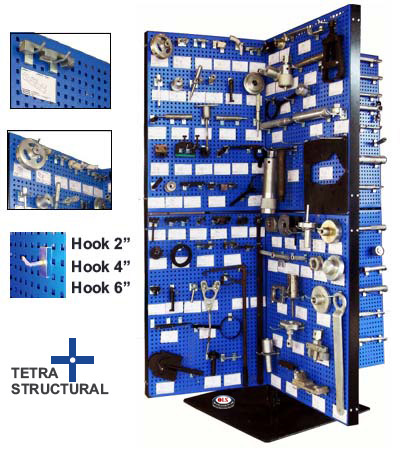

| Special Service Tools Board (Revolving Type) (OLS - 813) |
|
This Tool Crib is a revolving type structure provided with 4 vertical & 4 platforms on each wall. The tool crib wall is made of perforated sheet with the provision of
mounting detachable hooks. This complete structure is supported on a vertical tube with thrust bearing at the base, which gives revolving movement to the vertical. Each platform can accommodate approximately 20-30 tools (Tool count may defer with sizes) and therefore one entire tool crib can accommodate around 300- 400 tools. The detachable hook & plastic trays are provided for mounting the special tools on the platforms. Also an identification plate is provided for each special tool.
|
| |
|
| |
|
| |

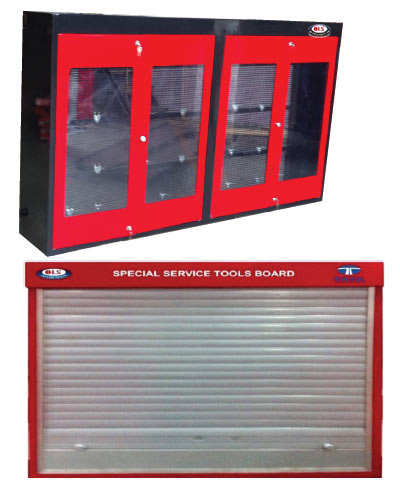

| Special Service Tools Board (OLS -814) |
|
- The board is designed to keep special tools
in organized way.
- It helps mechanic for getting the tools faster
to minimize Run Down Time.
- Specially designed adjustable plug- n - play
hooks to hold the special tools
|
|
|
