| Four Wheeler Garage Equipments - Wheel Service Equipments |
|
|
|
|
|

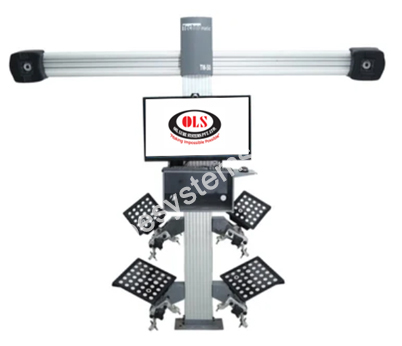

| WHEEL ALIGNER - CAR ALIGN 3D - PIT TYPE |
|
- 4 Points Wheel Clamps
- High-Precision Target Disk
- 3D-Tech Compensation
- Toe/Camber Measurement
- Imported Precision Camera
- Adjustable Camera Bar Angle
- M3 Equipped With 18" LED
- WxDxH : 370x370x47.2 mm
- Load Bearing Capacity : 15000 Kgs
- Weight : 20 Kgs
- Feedback During Measuring
- No Calibration Headaches
- Voice Assist
- Park Assist
- Lower Maintanance Cost
|
|
|
|
|

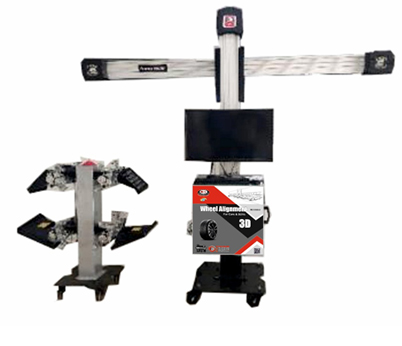

| WHEEL ALIGNER - CAR ALIGN 3D ON WHEELS (Movable) |
|
- Its patented Wide Scope Camera Technology can perform
- Wheel Alignment at the floor level as well as on the Two Post Lift
- at 6 feet height without changing the height of the camera beam/li>
- No expensive service bills due to accidental drop of sensor.
- No sensor calibration issues.
- No battery discharge issue.
- No heavy weight sensors
- Quick result – All four axles same time saves time
- 2 Camera – Technology
- Suitable for shop with 3D at the entrance
- The use of 3D technology allows high precision measurements, special
- camera firmware promotes a high speed screen refresh.
|
|
|
|
|

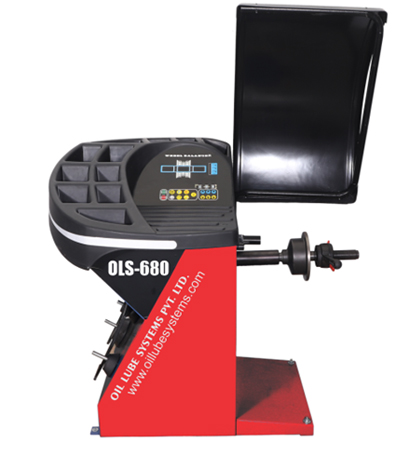

| Wheel Balancer |
|
- Accurate 5gm, 1gm in fine mode.
- Three Alloy Rim Programs.
- One Steel Rim Program
- Malfunction Detect Program.
- Self-Calibration Program.
- Membrane Keyboard.
- Automatic Brake.
- Noise level in working condition <70 db.
- Max Wheel Weight Capacity : 65 kg
- Balancing Speed : 200 rpm.
- Motor : 0.25 KW
- Rim Diameter : 10”-24”
- Rim Width : 1.5” – 20”
|
|
|
|
|

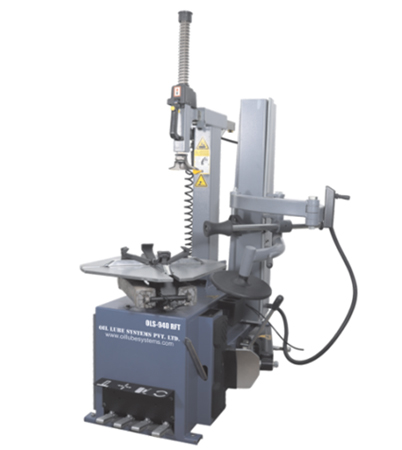

| Tyre Changer |
|
|
- Self Centering Device.
- Pneumatic bead beaker blade.
- Most suitable for mag wheels
- Special tool for alloy wheels in package
- Rim Width : 3” -12”
- Bead Breaker Force : 2500kg
- Inner Wheel Diameter : 12” – 22”
- Outer Wheel Diameter : 10” – 20”
- Operating Pressure : 8 – 10 Bar
- Motor : 1.10/0.75KW
|
|
|
|
|
|

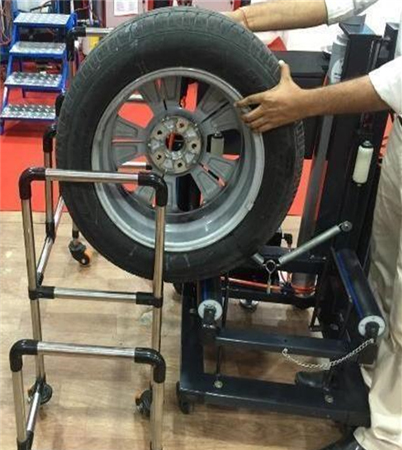

| Wheel Transfer Trolley |
|
|
 |
|
|
|
|
|
|
|

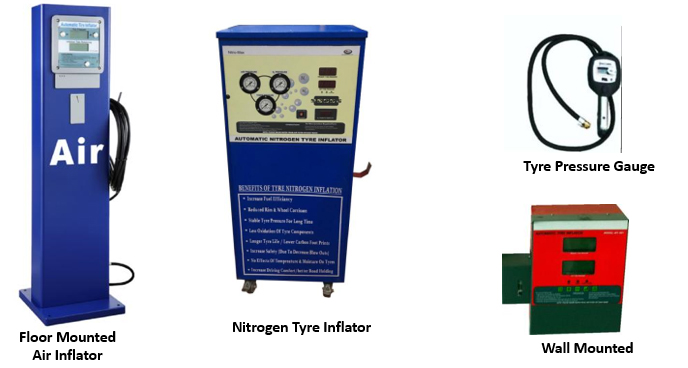

| Digital Tyre Inflator / Deflator |
|
|
 |
|
|
