Four Wheeler Garage Equipments - Oil Management System (OMS)
Oil & Lubrication

Oil Management System

This Oil management system provides centralized control of fresh Lubricants dispensing.
Available in customized Nos. of dispensing outlet & points as per user requirement.

Option Available up to 8 Grade / Type of Oils.

It is an electronically controlled intelligent unit that provides precise metering and dispensing of oil at automotive Workshops and industrial application. It also provides automated tracking and monitoring of the lube room for accurate oil dispensing and prevent the spillage of oil and also eliminate the human error.

The Microsoft Windows based OMS takes the next step in the evolution of PC based oil monitoring systems.

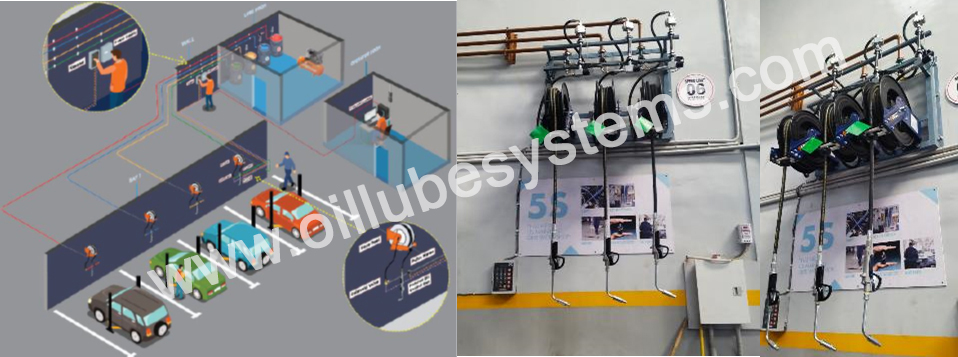

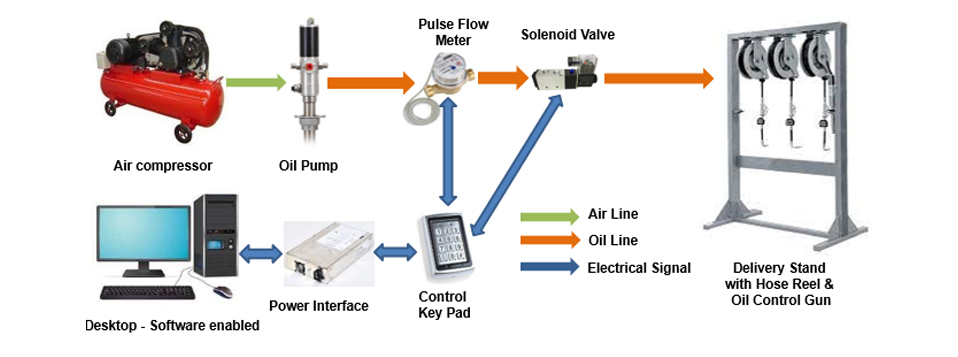

OMS Layout & Elements (for 4 Grade Oils)

OMS for 4 Grade – Oil Consists of :-

Power Unit-1 No., Keypad- 1 No.,
10 Mtr. Cable- 1 No.
2 Mtr. Cable- 4 No. Solenoid Valve- 4 Nos.
Pulse Meter- 4 Nos.)

Air Operated 5:1 Oil Ratio Pump – 4 Nos.
Hose of 10 Mtr. – 4 Nos.
Oil Control Gun – 4 Nos.
Hydraulic Hoses (1.5 Mtr.) – 4 Nos.

OMS Elements

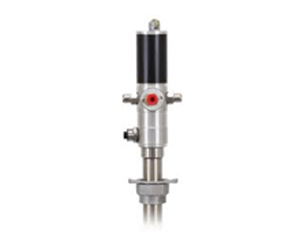

Oil Ratio Pump
World-class Industrial 5:1 Oil Dispensing Pumps with guaranteed performance & hassle free operation

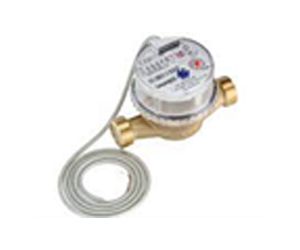

Pulse Flow Meters
Electric oval gear meter suitable for monitoring the delivery of oils with a wide range of viscosity.
Flow Rate: Upto 30 L/Min
Operating Pressure: Max 70 Bar
Repeatability: 0.3%
Accuracy: ± 0.5%

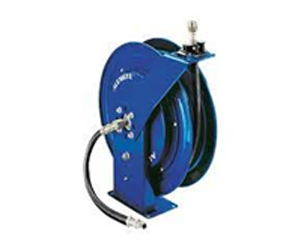

Hose Reel
All metal 10m hose reels with Heavy duty dual ratchet to reduce stress on spring smooth & balanced operation during hose extension & retraction. Can lock hose in multiple usable positions

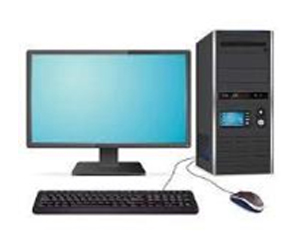

Controller software
Easy to operate software interface offering outlet dispensing activated directly from the PC software
(PC Not Included)

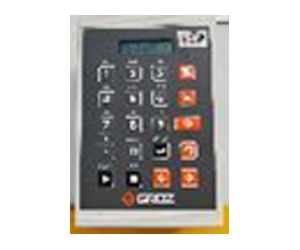

Control Key Pad
A single Control Keypad can monitor up to 4 different outlets dispensing

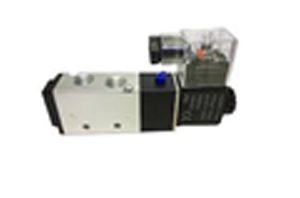

Solenoid Valve
Flow range: 0 to 50 l/min
Operating Pressure: Max 207 bar
Inlet/Outlet connections : 1/2” BSP

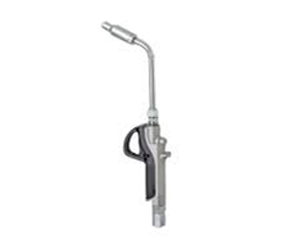

Oil Control Gun
having built-in continuous flow switch that can be activated for unattended dispensing

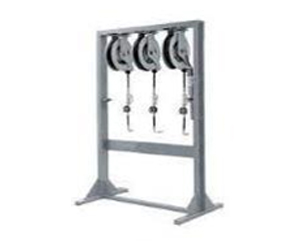

Stand for Hose Reel
MS Rigid Structure Powder coated for mounting of Oil Hose Reel at Shop Floor / Roof / Wall.

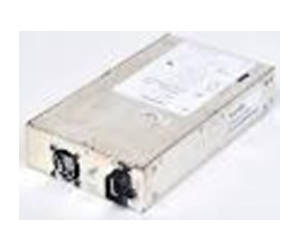

Power Supply Interface
A single power supply gives enough power to run up to eight outlets

Waste Oil Disposer

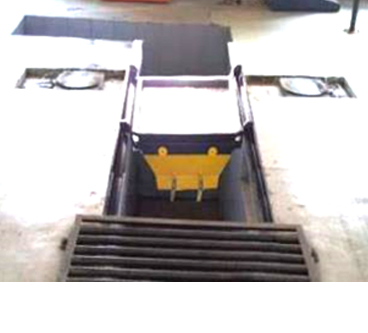

Waste Oil Collection / Transfer System( Pit Bay Type)

Unique design of Used Oil Collection Trolley with Separate Chambers for Gear Oil & Engine Oil & Built-in Pneumatic System with Safety Regulator Valve for Transfer of Oil after Draining. Capacity 50Ltrs., Facility of Height Adjustment.

Waste Oil Disposer

Keep Work Shop Floor Neat & Clean, Safe disposal of Waste Oil, Keeps Control on Pollution, Enhance Safety & Service Quality.

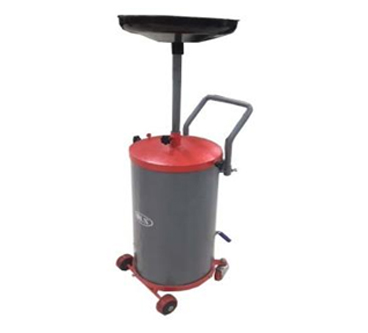

Oil Drain Trolley
  • Waste Oil Collection & Transfer System with Collecting Tray.
  • Easy to dispose the Waste Oil through compressed Air.
  • Tank Capacity – 45 Ltr.
  • Waste Oil Collection during lifting position.

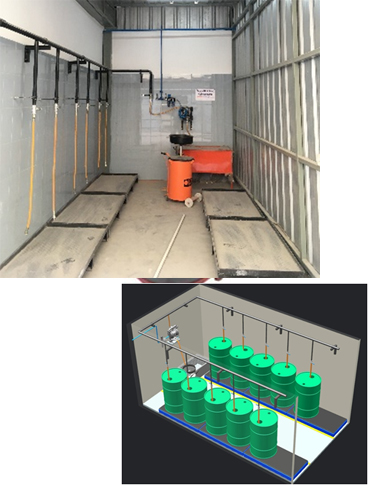

Waste Oil Transfer System
Diaphragm Pump, Hydraulic Coupler, FRL Set, P.U. Coiled Hose Pipe, Ball Valves, Waste Oil Collection Stationary Tank With Mesh, Hydraulic Pipes & Drum Fittings, Waste Oil Disposer on Wheels


Oil Disposer (Folding Type) (OLS - 076)
Thoughtfully Designed Brake Service Equipments reduce Repair Time & Ensure Full Proof Brake Bleeding Operation & Efficient Brake Service.
Electric Brake Bleeder
  • Electrically operated.
  • Replace Brake fluid faster due to pressurized system.
  • All wheels bleeding can be done simultaneously.
  • Replacement of Fresh brake fluid with inbuilt pressure pump.
  • Specially designed used brake fluid collection chamber.

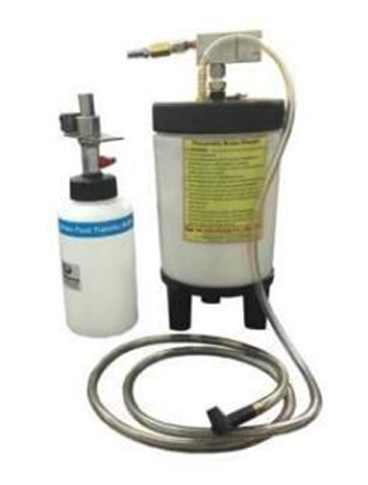

Pneumatic Brake Bleeder

The pneumatic brake bleeder works with compressed air to quickly assist in brake bleeding during service. The simplicity of this equipment allows brake bleeding to get done by one person. Flush and refill the entire brake system with this brake fluid bleeder. To replenish the fresh brake fluid reservoir bottle is available with this system.

  • Convenient one-person operation
  • Flush and refill entire brake system
  • Works on disc or drum brakes
  • Adapters for connecting master cylinder reservoirs with transparent tube.

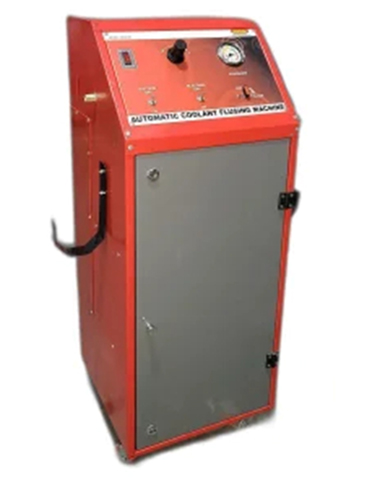

Coolant Flusing Machine
  • Compressor Type Dynamic
  • Power 100 W
  • Type Coolant Flushing Machine
  • Single Phase 220V AC
  • Material Mild Steel

Pneumatic / Manual Foot Operated Grease Pump
